Munters - the original dehumidifier inventors since 1955
Munters AirTech manufactures desiccant dehumidification systems designed to remove moisture from the air to control humidity in commercial buildings and industrial processes. Munters dehumidification systems are used by more than 20 major industries in hundreds of applications providing better indoor air quality and comfort, as well as increased production capacity.
Munters Head Office and production plans are based in Sweden, and are represented globally in over 30 countries. Munters are listed on the NASDAX Stockholm and trade under the MTRS symbol.
Our Munters AirTech dehumidification technology will eliminate humidity-related problems, minimize costly downtime and provide accurate dry conditions for your unique industry need.
With over 20 years of experience, Munters partnered with SMAC Enterprises, offers complete turn-key dehumidification solutions for every unique need. We understand the causes and effects of humidity and how it interacts with even tiny alterations in temperature, dew point, barometric pressure and weather conditions and any other parameters specific to your particular industry.
Our experienced Munters trained specialists are here to help you with just about any issue associated with moisture in the air so that you don’t need to pour time, money and effort into dealing with the problems.
SMAC Enterprises are sole representatives in South Africa representing Munters AirTech, the dehumidification division of Munters. SMAC Enterprises are sole distributers for Munters dehumidifiers within the Southern Africa region.
The munters airtech range of dehumidifiers
The following Munters dehumidifiers are available in Southern Africa:
Click on the model name for info:
The Munters AirTech range of dehumidifiers:
REFRIGERANT DEHUMIDIFIERS
Munters MK series – portable commercial cooling dehumidifiers with digital display. Modern technology can only be accomplished with the help of digital components. Consequently Munters MK-series, utilizing a built-in RH/T sensor in combination with the digital multifunctional display, guarantees intelligent as well as cost effective dehumidification.
Their most suitable area of use is within the water and fire damage restoration industry as well as the construction industry. They also protect pipes and fittings from corrosion and condensation in waterworks and can also be used to recue relative humidity in storage rooms, cellars, archives and other small limited storage spaces.
The dehumidifiers are equipped with adjustable handles to increase flexibility. For higher mobility as well as protection of inventory bumpers and wheels are covered with rubber. Accessories like drainage pump, external hygrostat and wall brackets put the finishing touch to the Munters MK dehumidifiers.
The dehumidification as such takes place in the cooling coil (evaporator) of the dehumidifier following the principle of a water trap. An axial fan pulls ambient air through a coil cooling the air below dew point. Water condensates and is collected in a water tank or a drainage hose. The cooled and dehumidified air is pulled further through a heating coil (condenser) and regains its heat. The additional heat of the compressor results in a slight increase of temperature. By recirculating the air the dehumidification happens fast, effective and careful.
The MK Series features:
– Digital multifunctional display
– High mobility
– High dehumidification capacity
– Built-in RH/T sensor for hygrostat function
– Environmentally friendly refrigerant R134a
– Robust
– Hour meter
– External signal for Operation and Alarm
Info and spec sheets:
SMALL PORTABLE DESICCANT DEHUMIDIFIERS
The Munters M120 desiccant dehumidifier is suitable for use within the water and fire damage restoration industry as well as the construction industry, Its rugged casing is constructed from corrosion resistant die cast aluminum.
Its very compact construction incorporates sections held together by four bolts. The sections contain fans that are driven by a common motor, a direct gear driven desiccant rotor, and a reactivation airflow heater. The two end casings contain distribution chambers with isolated sections that provide a precise balance for dehumidification and reactivation airflows.
The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled in the front compartment. The Munters M120 dehumidifier conforms to both harmonized European Standards and to CE marking specifications.
Key features:
- Compact & lightweight
- Desiccant rotor and reactivation airflow heater
- Humidity temp sensor
- Reliable & energy efficient
- kWh counter
- Remote control option
- Product upgrade with new silent fan
- Noise reduced from 65dB(A) to 58dB(A)
- Rugged casing constructed from corrosion resistant die cast aluminum
Info and spec sheets: Munters M120 info & spec sheet here. Airflow 120m3/h
The Munters MG50 and MG90 desiccant dehumidifiers are designed to efficiently dehumidify air – they are suitable for use within the flood restoration, water damage and/or fire damage restoration business as well as the construction industry.
Its very compact construction incorporates sections held together by four bolts. The fan, desiccant rotor and reactivation heater are secured in fixed positions within their respective sections without utilizing additional attachments. One of the sections contains a distribution chamber with isolated sections that provide a precise balance for dehumidification and reactivation airflows.
Its rugged casing is constructed from corrosion resistant die cast aluminum. The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled in the upper compartment.
The Munters MG series dehumidifiers confirm to both harmonized European Standards and to CE marking specifications.
Key features:
- Low weight
- High efficiency down to -20°C
- Distribution chamber with isolated sections providing a precise balance for dehumidification & reactivation airflows.
- Robust rugged casing constructed from corrosion resistant die cast aluminum
- Easy to service
Info & spec sheets:
Next Level Portable Dehumidifier – get the perfect climate anywhere.
The new Munters M300 marks a leap in evolution in modern dehumidification and is the first in a new generation of next level dehumidifiers from Munters.
It offers outstanding performance, energy efficiency and control – all in a lightweight, yet robust design. An efficient dehumidifier with minimal maintenance and service requirements in demanding environments. Munters M300 is ready to make the toughest conditions imaginable, quite manageable.
- Smart and robust design: Lightweight, robust casing for easy portability and quick setup.
- State-of-the-art AirC control System: Intuitive digital controls with customizable settings for specific requirements.
- High performance: Handles 300 m3 per hour with maximized energy efficiency.
- Next level in every detail: Extremely tight construction with fine tolerances for minimal leakage risks.
Key Features:
- High efficiency dehumidification between -20°C and 40°C
- Modulating humidity control including wet air temperature sensor
- New user-friendly HMI control panel with different access levels
- Energy recovery sectors included
- Extremely robust design
- PTC heater technology
- Completely sealed rotor unit with rotation monitoring
- EC fan for silent environments and variable performance
- Service and running indicator alarm as external indicators
- Modbus communications, stack-light, external start and stop functions
- Options: AirC Wireless node and sensors. .
Functions:
- Multiple settings possible
- Fully automatic
- Control of absolute humidity
- Control of dew point
- Self-adjusting air flow
- Built-in sensors and opportunity of external calibration
- Modbus TCP, Modbus RTU RS485
- Alarm management
- Plain Text on HMI (no codes)
- Heating control optimized for best performance
- Remote control of wireless sensors
Next level energy efficiency: Outstanding in its class
- Total power 2,900 W
- Efficiency full capacity: 1.24 kWh/kg H²0
- Efficiency eco mode: 1.14 kWh/kg H²0
- Dry air 20°C/60% (8.8g/kg):3.7-45 g/kg
Next level capacity: A new industry benchmark
- Extracts 2.00 kg H²0 per hour at 20°C/60 % RH
- Airflow 300 m³/hour .
Next level control and connectivity: Future proof !
- AirC 200 control unit – intuitive and easy to use
- Presets for plug and play or customise setpoints
- Connectors for external sensors and controls
- Modbus TCP
M300 versions:
- Base: without wireless connectivity
- Pro: Possibility to connect to AirC wireless
- Options: Euro plug, ECC plug or UK plug
The Munters MCS300 desiccant dehumidifier is designed to efficiently dehumidify air in open system applications. The design facilitates easy transport by one person to and within the spaces to be dehumidified.
The compact construction allows extended periods of operation with a minimum of maintenance. It is highly effective for use within the flood restoration, water damage and/or fire damage restoration business as well as the construction industry.
As standard an advanced control panel for easy and user friendly control of different functions is fitted. An energy consumption monitor that can be reset makes it possible to measure the consumption (kWh) during a specific period. Its rugged formed metal frame and access panels are produced from stainless steel.
The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled behind the control panel. These units conform to both harmonized European Standards and to CE marking specifications.
Key features:
- Low weight, easy to transport
- High efficiency down to -20°C
- Standard advanced control panel
- Robust rugged stainless steel metal frame and access panels.
- Easy to service
Info and spec sheets: Munters MCS300 – airflow 300m3/h
The Munters MH270 desiccant dehumidifier is designed for extended periods of operation and has a common fan for both process and reactivation airflows (i.e. a three hole unit). It contains a distribution chamber with isolated sections that provide a precise balance for dehumidification, purge, reactivation and heat recovery airflows.
This unit is suitable for use within the flood restoration, water damage and/or fire damage restoration business as well as the construction industry.
It is available with either a standard version or an advanced version control panel. Its rugged formed metal frame and access panels are produced from corrosion resistant ALUZINK®.
The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled behind the control panel. These units conform to both harmonized European Standards and to CE marking specifications.
Key features:
- Low weight
- High efficiency down to -20°C
- Distribution chamber with isolated sections provide a precise balance for dehumidification, purge, reactivation, and heat recovery airflows.
- Robust & rugged, metal frame and access panels are produced from corrosion resistant ALUZINK®.
- Easy to service
Info and spec sheets: Munters MH270 here – airflow 270m3/h
The Munters ComDry series are portable dehumidifiers that are specially designed to control humidity and eliminate damaging condensation in any environment. This series is designed for fixed installations in closed rooms, unheated basements or where it is impossible to get wet air outside the building.
The compact size of the units offers unlimited options for small spaces including storage and preservation, water works and construction, flood restoration, water damage and/or fire damage restoration.
An air cooled condenser recycles the reactivation air whilst ambient air is cooled below its dewpoint. The resulting water droplets extracted from the air are collected in a drip tray and drained away. Operational remote control and/or signals facilitate operation making the Munters ComDry series the perfect choice for static preservation applications.
The ComDry series of dehumidifiers are robustly built from corrosion resistant light weight material. A multifunction control panel provides a variety of control options making the ComDry extremely flexible and energy efficient.
For the condensor version with pump, select the M170L unit, for the drip drain condensor, select the M160L unit.
Key features:
- Compact, lightweight & portable
- Humidity / temp sensor
- Fast drying
- Robust & reliable
- Energy efficient with a kWh counter
- 3 step fan with upgraded new silent fan
- Remote control option
- Noise reduced from 65dB(A) to 58dB(A)
Download info & spec sheets:
Munters Comdry M60L – airflow 160m3/h
Munters Comdry M170L – airflow 170m3/h
Munters Comdry M190 – airflow 190m3/h
Munters Comdry M210x – airflow 210m3/h
The Munters MC series represents a range of desiccant dehumidifiers with high drying capacity, reliability and flexibility. The solid powder coated Aluzinc casing not only withstands corrosion (class 4), but also makes it versatile for a wide range of applications.
The analogue version allows for easy installation and can be equipped with an external humidistat for moisture control and energy saving, mostly for simple storage and preservation applications.
For more sophisticated process applications in food, pharma or other industries, the digital version has control options and functions available. Also suitable for use within the flood restoration, water damage and/or fire damage restoration business as well as the construction industry.
Key features:
- Compact design
- Analogue version = plug & play
- Digital version = multiple control options High efficiency
- Ducted air in/ outlets
- Easy filter change without tools
- Continuous fan mode
- Low noise level
- Various accessories
- Corrosion class 4
Info & spec sheets: Munters MC150 series
- MC150XA – airflow 260m3/h (analogue)
- MC150XD – airflow 260m3/h (digital)
- MC150YA – airflow 235m3/h (analogue)
- MC150YD – airflow 235m3/h (digital)
STAND ALONE DEHUMIDIFIERS
The Munters ML series desiccant dehumidifiers with AirC control, are designed to efficiently dehumidify air in low moisture applications. They are excellent all-round units with integrated humidistats.
Condensation units available as options as are gas regeneration on the biggest units. Modern AirC or Climatix control is available as options on the ML units.
Features include internally sealed rotor unit, corrosion-resistant casing design providing a precise balance for dehumidification, reactivation and heat recovery airflows. The durable Alzink® frame and access panels are ergonomically designed allowing simple installation and maintenance.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogen-free plastic. The electrical system is designed for up to 690V and 60º C. ML Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
Munters AirC is a revolutionary new control platform designed to make climate control smarter, more efficient and more intuitive. The new system puts our decades of industry leading experience right at your fingertips with one easy-to-use full-colour interface. This smart solution makes creating your perfect climate easier than ever. Read more about Munters AirC here …
Munters AirC features:
- Automatic modulation to ensure optimized energy efficiency
- Easy-to-use software system presented on a full-colour display
- Future software updates will keep your equipment on the cutting edge
- Scheduled maintenance notifications
- Enhanced communication capabilities
- Compatible with Munters Connected Climate
- Built-in alarm system
ML series key features:
- Requires minimal floor area
- Unique plastic rotor casing 100 % corrosion resistance
- Dehumidifies efficient down to -20ºC
- Dehumidifies to low dewpoint
- Interchangeable front and back panels – easier to install
Info and product spec sheets:
Munters ML1 standard RANGE:
- Munters ML180 – airflow 180m3/h
- Munters ML270 – airflow 270m3/h
MUNTERS ML2 STANDARD RANGE: with AirC
- Munters ML420 – airflow 420m3/h
- Munters ML690– airflow 690m3/h
- Munters ML1100 – airflow 1100m3/h
- Munters ML1350– airflow 1350m3/h
MUNTERS ML3 STANDARD RANGE: with Climatix Control
- Munters ML23– airflow 2300m3/h
- Munters ML17– airflow 1700m3/h
The Munters MLT series of desiccant dehumidifiers are designed to effectively dehumidify high airflow applications using minimal energy. An optimised series for storage applications providing high capacity at low energy consumption.
Air volumes range from 350 to 3000 m³/h.
It is equipped with an internally sealed rotor unit. The rotor casing is constructed of durable thermoset plastic and contains isolated sections that provide a precise balance for dehumidification, reactivation, and heat recovery airflows. Its rugged formed metal frame and access panels are produced from corrosion resistant ALUZINK®.
The electrical control system conforms to EN 60204 (IEC204) standards. The electrical components are mounted on busbars and are constructed of halogenfree plastic. The electrical system is designed for up to 690V and 60º C. MLT Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
Key features:
- Requires minimal floor area
- High airflow capacity
- Minimal energy consumption
- Unique plastic rotor casing 100 % corrosion resistance
- Rugged formed metal frame and access panels are produced from corrosion resistant ALUZINK®
- Dehumidifies efficient down to -20ºC
- Interchangeable front and back panels – easier to install
Info & spec sheets:
Munters MLT1 standard RANGE:
- Munters MLT350 – airflow 350m3/h
MUNTERS MLT2 STANDARD RANGE: with AirC
- Munters MLT800– airflow 800m3/h
- Munters MLT1400– airflow 1400m3/h
MUNTERS MLT3 STANDARD RANGE: with Climatix Control
- Munters MLT30– airflow 3000m3/h
The award winning Munters IceDry® has been specially designed for installation in cold stores and freezer systems and is a Food Technology and Health & Safety award-winning system.
The problem: Ice and snow builds up on cold store ceilings, walls and floors has the potential to cause unsafe working conditions especially on uneven floors where fork lift trucks carry loads at speed. The reduced visibility from fog increases loading and unloading times, and ice on evaporators can lead to increased frequency of defrosts and additional maintenance. The build up of ice and frost on packaging can make cardboard boxes collapse, affecting product quality, and prevent barcode scanners from working correctly .
The solution: Munters IceDry® alleviates all these issues by dehumidifying the incoming air from inside the cold store and removing high moisture levels which cause condensation, which at these sub-zero temperatures quickly turn to frost and ice. By installing an IceDry® dehumidifier inside the cold store a frost free cold store can now be a reality. An airlock is no longer needed. When IceDry is installed, accumulated ice and frost will gradually evaporate until the store is completely free from ice and frost.
IceDry® is the only dehumidifier that has been developed especially for installation inside a cold store. The tough, cold environment demands new and special features created with the sole purpose of ensuring that the unit runs reliably and energy efficient. One example is the automatic defrosting function. IceDry needs only a few metres of ducting around it. Reactivation air is taken from the room next to the cold store. The control panel is placed outside the cold store. As soon as the unit is connected to power and switched on it will start to reduce ice and snow. There is also a special reactivation fan in an insulated fan box supplied with a heating cable.
Munters IceDry® wins prestigious Health & Safety Award
The Food Storage and Distribution Federation (FSDF) announced their annual awards which recognise excellence in health and safety. The judges looked for an innovative approach, good prospects for wider application and cost-effective deployment prospects throughout the food storage and distribution industry at large.
The winner of the FSDF Associate Member category was the Munters IceDry solution, an innovative frost prevention dehumidification system which removes airborne moisture, reduces ice build-up and fogging, and greatly reduces accidents in cold storage areas. Read more …
Key features:
– Specially developed for cold store installation
– Automatic defrosting function
– Increased efficiency of evaporators
– Safer cold stores, no slippery floors
– Reduced need for defrosting cold store
– No ice on products, secures the quality of frozen goods
– Less mechanical failures, reduced maintenance costs
Info & spec sheets:
- Munters IceDry 1400 – airflow 1400m3/h
- Munters IceDry 30 – airflow 3000m3/h

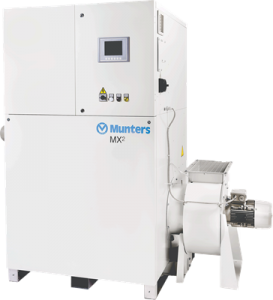

The MX² series is a superior dehumidifier for applications ranging from precise food, pharmaceutical and chemical process control to artefact and general storage, sandblasting and preservation against condensation effects in ice rinks, swimming pools, turbines, switchgear, bridges etc.
The MX² series combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and communication.
Low energy consumption and reliability are important in todays processes. Our modern control system together with high efficient fans which, meet the EU Ecodesign directive, supported with frequency converters give you numerous options to optimise your energy consumption. The Energy Recovery Purge (ERP) or Energy Efficiency Purge (EEP) is available as a standard option in order to save energy.
The MX² series is equipped with a number of alarm functions to ensure total control of the dehumidification process. Frame casing and outer panels are made of corrosion resistant AluZink and coated in RAL 7035.
The MX² series dehumidifiers covers a wide range of needs by providing a variety of standard functions. The numerous options will allow pre- and post treatment by simply adding mechanical and electrical components.
The MX² series can be supplied with 3 different reactivation alternatives – electrical, steam or gas. A service indicator activates when a preventative service is due, this is a standard feature. To make installation easier the process fan inlet has been designed to allow for different outlet positions.
The electrical equipment conforms to EN 60204 (IEC204). The MX² series of dehumidifiers conform to both harmonised European standards and technical specifications for CE marking.
Key features:
– Efficient dehumidification between -20°C and 40°C
– Modulating humidity control including wet air temp sensor
– Communication and external control options
– Filter and rotor stop alarm as standard
– Energy saving options
– Service and running indicator alarm as external indicators
Info & spec sheets:
- Munters MX² 30 – airflow 3000m3/h
- Munters MX² 35 – airflow 3500m3/h
- Munters MX² 40 – airlflow 4000m3/h
- Munters MX² 55 – airflow 5500m3/h
- Munters MX² 60 – airflow 6000m3/h
- Munters MX² 80 – airflow 8000m3/h
- Munters MX² 95 – airflow 9000m3/h
The MCD (Munters Configurable Dehumidifier) used the temperature independent sorption principle based on HPS (High Performance Silica Gel) rotor as the dehumidification method. It works efficiently in a wide temperature range from -20°C to 40°C allowing the a wide range of different applications.
The MCD series combines traditional Munters strengths like efficiency and robustness with modern state of the art technology like modulating RH control and communication.
Low energy consumption and reliability are important in todays processes. Our modern control system, together with high efficient fans which meet the EU Ecodesign directive, supported with frequency converters, offers numerous options to optimise your energy consumption.
The Energy Recovery Purge (ERP) is available as a standard option in order to save energy.
The MCD series is equipped with a number of alarm functions to ensure total control of the dehumidification process. Frame casing and outer panels are made of corrosion resistant AluZink and coated in RAL 7035.
The MCD series dehumidifier covers a wide range of needs by providing a variety of standard functions. The numerous options will allow pre- and post treatment by simply adding mechanical and electrical components.
The MCD series can be supplied with 3 different reactivation alternatives – electrical, steam and gas. A service indicator activates when a preventative service is due, this is a standard feature. To make installation easier the process fan inlet has been designed to allow for different outlet positions.
The electrical equipment conforms to EN 60204 (IEC204). The MCD series of dehumidifiers conform to both harmonised European standards and technical specifications for CE marking.
Key features:
– Efficient dehumidification between -20°C and 40°C
– Modulating humidity control including wet air temp sensor
– Communication and external control options
– Filter and rotor stop alarm as standard
– Energy saving options
– Service and running indicator alarm as external indicators
Info & spec sheets:
- Munters MCD 100 – airflow 1000m3/hr
- Munters MCD 120 – airflow 1200m3/hr
- Munters MCD 140 – airflow 1400m3/hr
- Munters MCD 155 – airflow 1550m3/hr
COMPLETE AIR HANDLING UNITS
The DSS Desiccant System Solution™ offers a wide variety of material and components to fit most difficult applications for indoor and outdoor installations. A complete DSS system, ready for operation, consists in its standard design of components for the pre & post treatment, dehumidification rotor with reactivation and required fans for process and reactivation air.
All individual components and the rotor are fitted in a fully configurable box system, modular construction with insulated panels applying to EN1886 standards. All casing parts are corrosion resistant by use of galvanized steel plates or stainless steel. Each unit consists of a self-supporting and stable sectional frame construction with form-fitting panels inserted. The panels are easily removable from all sides, mounted to a rubber-seal. The inner and outer panel surfaces are configurable in material.
The systems with controls included will be completely tested by the factory, so that the delivered units can be easily installed locally and started up in a short period. A complete configurable system unit with many possibility for options.
Key features:
– Energy efficient dehumidification
– Gas, steam and electric reactivation standards
– Configurable boxes and panels
– Different rotor types
– Controls fully configurable with standard options
Info and spec sheets: DSS Desiccant System Solution
The DSS Pro™ is the ideal dehumidification solution that can be built to fit the specific needs of even the most challenging applications. It is simple to install and can be fitted internally or externally, while the customization options ensures the best solution for your business.
Munters DSS Pro™ is the flexible standard with full function integration, delivering your ideal indoor climate whenever and wherever it is needed. It is available for indoor and outdoor installation in 20 different configurable sizes, and 3 different desiccant rotor types are available depending on the application and where the unit needs to be installed. Nine different rotor sizes can be selected with different widths in relation to the requested dehumidification capacity.
The complete system comes equipped with our revolutionary AirPro casing. This new enclosure offers a variety of benefits, from significantly improved durability to reduced air leakage and lower energy consumption. It is also ready for sustainable energy, so if you choose to switch to renewable energy, the Munters DSS Pro™ facilitates that improved sustainability.
Munters DSS Pro is made from specially selected materials, and the fully configurable AirPro enclosure is a modular construction with insulated panels meeting EN1886 standards., which are corrosion resistant by use of special Munters Protect plates or stainless steel.
Munters Protect is the best ant-corrosion protection on the European market and consists of metal coating containing key elements for corrosion protection. The coating has self-healing properties eliminating the microscopic weak points coming from cuts, bend and hole punches and gives substantially longer protection to the metal than conventional galvanization. Benefits are a longer product life-cycle, less maintenance, reduced total cost of ownership and less environmental impact.
Stainless steel. Food processes require food safe materials to keep their processes safe and prevent hygienic risk and contamination. Munters DSS Pro can be delivered in
stainless steel with hygienic and food grade properties compliant with the hygienic standards such as the VDI6022.
Munters DSS Pro is fully configurable, and built to meet specific requirements. Desiccant rotors and materials can be selected based on the needs of your application area, and the modular nature of this Munters solution means installation and delivery is straightforward. A wide range of controls is also available, ensuring smooth implementation.
The system is fully compliant with EN1886 standards, and manufactured in an ISO 9001 certified production facility, and Munters renowned quality is present in every part of the solution.
Based on the desiccant rotor technology, originally patented by Munters, our Munters DSS Pro systems provide high moisture adsorbing capacity year after year, enhanced performance through the energy recovery sector and certified bacteriostatic desiccant rotors.
Proven outstanding quality. Made of a non-metallic, ceramic composite, Munters highly hygroscopic rotors are engineered to provide superior strength and durability. The manufacturing method, developed and patented by Munters, results in a strong and stable structure. Our quality control tolerates no imperfections that can inhibit the performance of the dehumidifier, and the desiccant wheel is characterized by a smooth and regular surface – designed to last.
Munters DSS Pro is equipped with the Munters custom configured control system, which is mounted in a separate control enclosure.
Available controls & integrations include:
• HMI systems local or remote
• Modbus TCP/IP, Modbus RTU, BACnet IP and WEB options for remote connectivity like Munters Connected Climate™ (MCC)
• Control by absolute humidity, relative humidity or dew point
• Flow control or pressure control
• Temperature control
• Controlling of all functions and alarms
Everything is wired and factory tested before delivery and implementation.
Key features:
• Energy efficient dehumidification
• Gas, steam and electric reactivation as standard
• New AirPro casing increases durability, strength and energy efficiency
• Full humidity and temperature control
• Airflow range from 3,000 m3/h up to 140,000 m3/h*
• Configurable fans on process circuit
• Choice of housing to ensure suitability
• Advanced controls and communication
* Airflow data are measured at standard dry air conditions (20°C, 1,013hPa)
Info & spec sheets: DSS Pro™ product sheet.
CLIMATE SYSTEMS - TEMPERATURE & HUMIDITY
The ML Plus system is designed for sensitive production processes offering an energy saving climate control in only one unit creating optimal production climate control around the year.
For archives the ML Plus system offers both humidification and dehumidification in one and the same unit, the system will ensure perfectly controlled humidity and temperature conditions.
The ML Plus system offers combined Temperature & Humidity Control / Climate systems – temperature and humidity. Built up by standard modules the ML Plus concept is a compact standardized standalone dehumidification system with incorporated temperature and humidity control.
The ML Plus system can be configured with booster fan, humidifier, pre and post coolers and heaters according to your requirements. The ML Plus system is built up in elements, assembled and tested in our factory and is ready for immediate start up on site.
By standardising it has been possible to minimize the foot print measurements enabling simple integration of ML Plus into most moisture sensitive production processes.
The ML Plus system can be delivered with airflows from 180m3/h up to 5500m3/h – the system is quick and easy to connect to existing pipes and ducts.
Key features:
- Highly flexible system – pre-engineered modules to be combined
- Modulated control of react. heater secures minimized energy consumption
- High quality casing for hygienic demands
- Compact design – small foot print – easy to locate and install
- Easy installation – plug & play
- Fits to ISO-standard ductworks
- Easy service access
Info and spec sheets: Munters ML Plus brochure
The heart of the MX² Plus Climate System is Munters’ new and highly energy efficient MX² stand alone dehumidifier. Based on customer specifications, needs and requirements, modules are added to provide full climate control, controlling both temperature and humidity.
The MX² Plus Climate System can be easily configured with pre- and/or post treatment modules for humidifying, cooling, heating and filtration.
The system is built up and fully tested at our factory. It is delivered in modules on base frames and are easily assembled and connected on site.
Key features:
– Full flexibility – fully configurable
– Energy optimised solution
– Small footprint – easy installation
– Only ONE supplier and service partner
– One CE mark for the complete system
– Modern Climatix control system
– Electricity/steam/gas regeneration options
– Complete documentation on order
Info and spec sheets: MX² Plus Climate System
The MDU units are combined temperature and humidity control systems for process industry applications where there are stringent demands for regulation o f moisture and temperature, e.g. pharmaceuticals, food production, electronics etc.
As close to tailor-made as you can get, the MDU unit is constructed around a modular system in which all the units are designed to meet the specific preferences and fulfill EU norms for performance and quality at the same time.
As these systems are designed according to your specific wishes and requirements, please contact us for further information.
Key features:
– Complete modular dehumidification system
– Indoor and outdoor installation
– Customise for hygiene requirements
– Simple maintenance
– Insulated panels
Info & spec sheets: Munters MDU
R-Series Rental Industrial Dehumidifiers
The Munters R-Series dehumidifiers provide the rental industry with a line of reliable and durable dehumidification systems built for ease of mobility nd flexibility to meet the wide variety of customer requirements and applications.
Each system contains Munters’ patented Honeycombe® desiccant rotor technology and is available in sizes of 5,000 SCFM, 10,000 SCFM or 15,000 SCFM.
Key features:
• Minimum 1/8” aluminum all-welded construction
• Cage is designed to bolt directly to skid with top-of cage certified lifting lugs
• Integral forklift pockets and lifting points
• R-5,000 and R-10,000 designed to be stackable
• 400mm deep Silica Gel rotor
• Gas and electric dual reactivation
• Natural gas and propane single gas train selector switch
• Cam lock power connections
• Chain wheel drive
• Dry air fans provide 5” W.C. external static pressure at maximum volumes and higher at lower volumes
• 18”/20” round connection with tethered plastic inlet/outlet covers work as lay-flat duct holders when ducting is required
• User instructions and unit flow diagram (with red and green status lights for reactivation temp, wheel drive, process fan, etc.) located directly on units
• ETL/UL approved
Info & spec sheets: R-Series Rental Dehumidifiers product sheet
